VDI社製 パッシブ部品
導波管部品
仕様

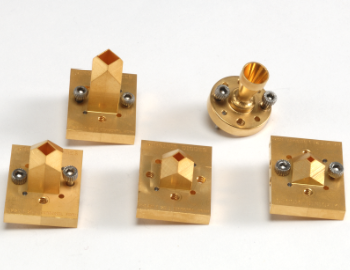

導波管、テーパー、アンテナ
Passive VDI Components | ||||||
Waveguide Designation |
Start Freq. (GHz) |
Stop Freq. (GHz) |
Straight Waveguide |
Waveguide Tapers for PM5 |
Horn Antennas† | |
1" | 2" | |||||
WR-15 | 50 | 75 | Y | Y | - | Y |
WR-12 | 60 | 90 | Y | Y | - | Y |
WR-10 | 75 | 110 | Y | Y | - | Y |
WR-8.0 | 90 | 140 | Y | Y | Y | Y |
WR-6.5 | 110 | 170 | Y | Y | Y | Y |
WR-5.1 | 140 | 220 | Y | Y | Y | Y |
WR-4.3 | 170 | 260 | Y | Y | Y | Y |
WR-3.4 | 220 | 330 | Y | Y | Y | Y |
WM-710 (WR-2.8) | 260 | 400 | Y | Y | Y | Y |
WM-570 (WR-2.2) | 330 | 500 | Y | Y | Y | Y |
WM-470 (WR-1.9) | 400 | 600 | Y | Y | Y | Y |
WM-380 (WR-1.5) | 500 | 750 | Y | Y | Y | Y |
WM-310 (WR-1.2) | 600 | 900 | Y | Y | Y | Y |
WM-250 (WR-1.0) | 750 | 1100 | Y | Y | Y | Y |
Notes:
VDI can provide a variety of custom parts such as bends and twists. VDI may offer other customized waveguide parts (NRE cost required).
†VDI's current feedhorn specifications can be found here. Previous VDI Feedhorn documentation may be accessed here.
