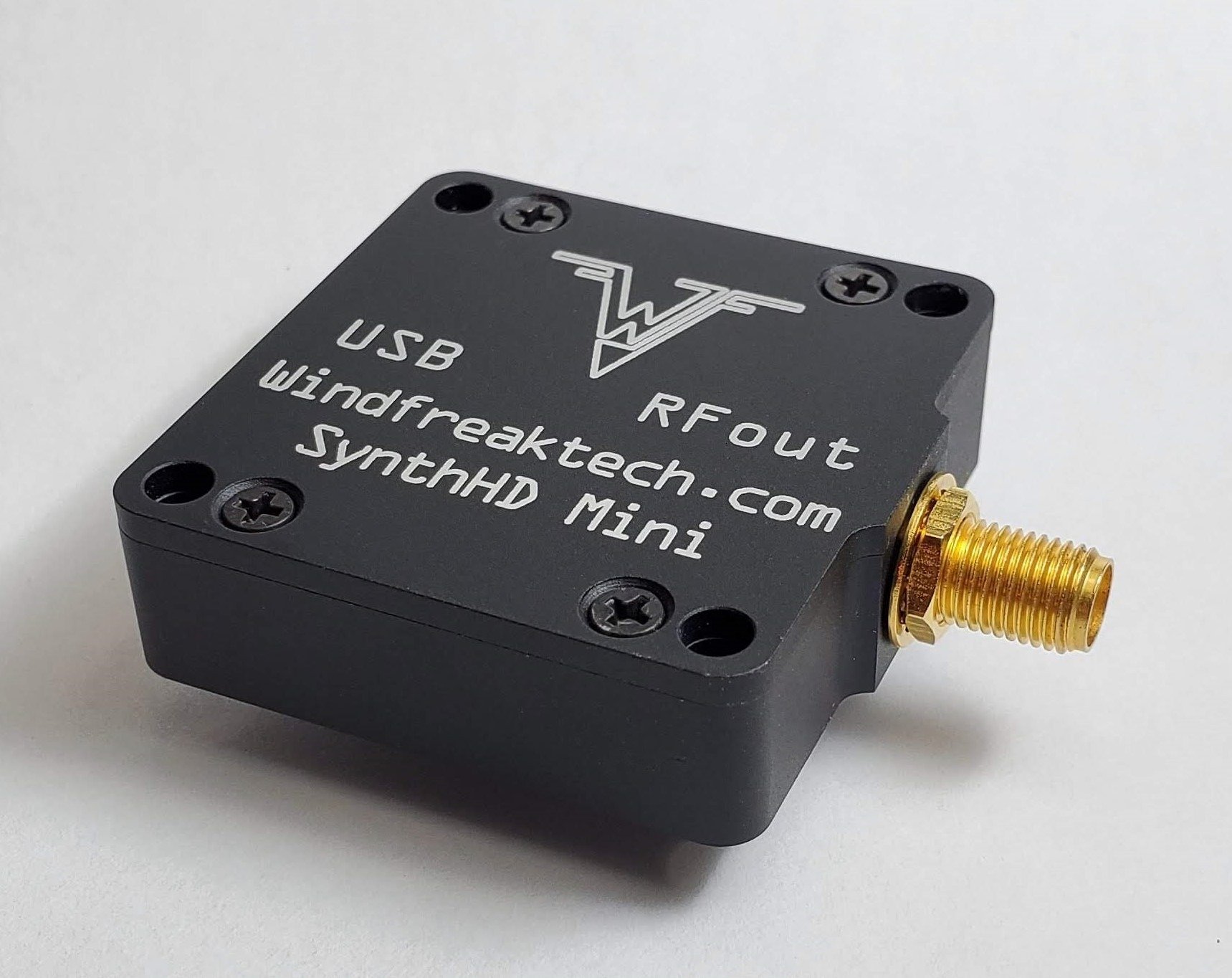

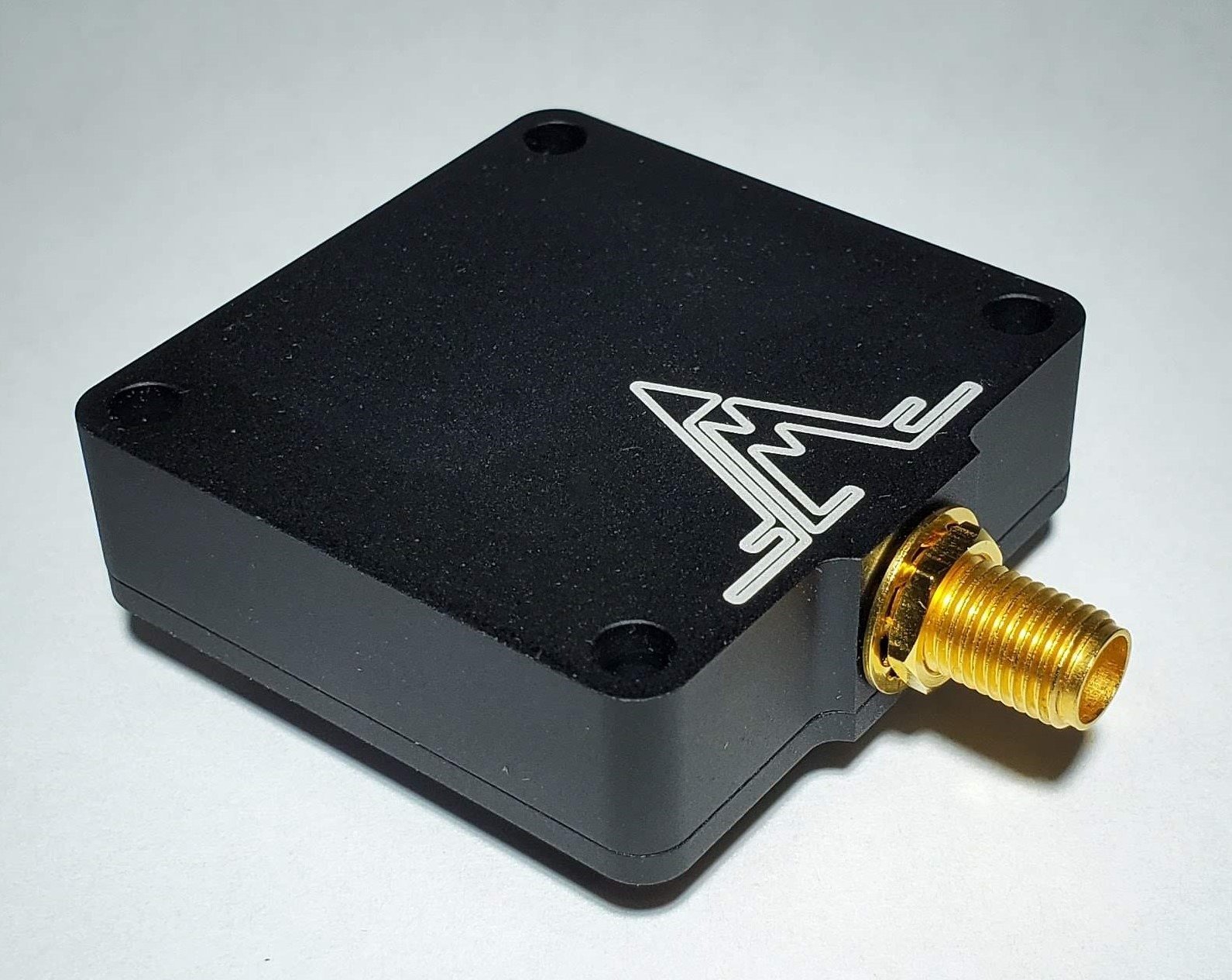

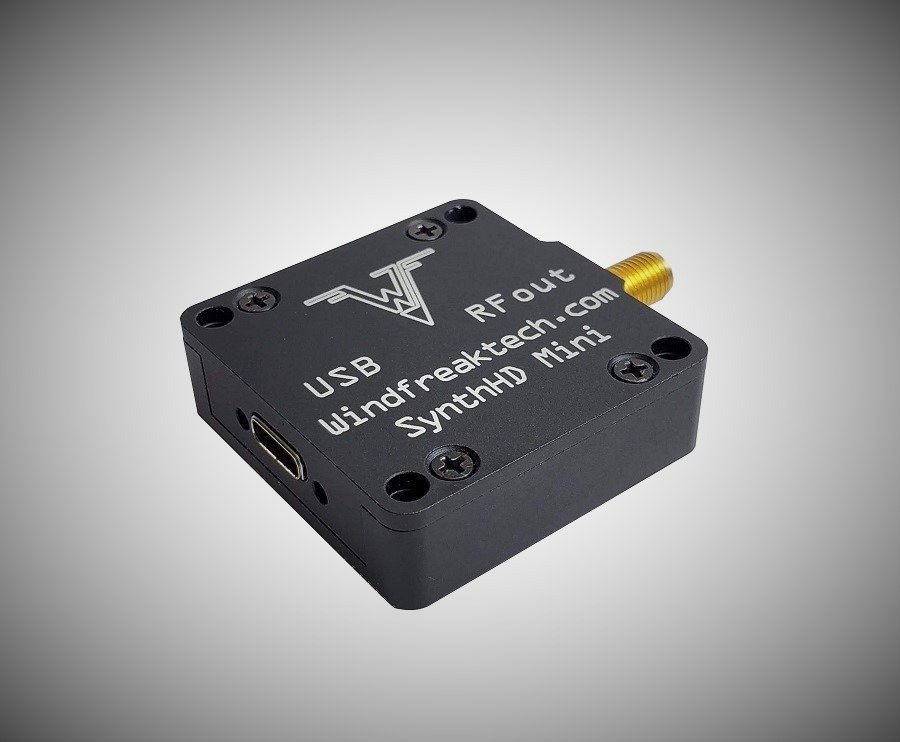

SynthHD Mini: 10MHz - 15GHz Microwave RF Signal Generator
Windfreak Technologies
マイクロ波ベクトル信号発生器 - 世界最小サイズ！
SynthHD Miniは10MHz～15GHz RF信号発生器です。 この超小型サイズと価格にもかかわらず、優れたパフォーマンスが期待できます。
10MHz～15GHzの周波数を0.01Hzの分解能でチューニング。
0.01dBの分解能で最大+20dBm、30dB以上の範囲で校正振幅を調整可能
FM、AM、パルス、スイープ、リスト変調の実行
内部動作温度：-40C～+85C（-40F～+185F）
性能
- 10 MHZ to 15 GHZ in 0.01 Hz steps
- -13 dBm to +20 dBm (typical) in 0.01 dB steps
- Select internal 27MHz reference or use external 10-100MHz reference
- Pulse, AM, and FM internal modulation including FMCW radar chirp
- Pulse Modulation with 1uS minimum width and 1uS resolution
- Pulse, AM, and FM external modulation from DC - 10KHz
- Powerful Trigger modes allow external triggering of most functions without a PC connected
- Linear, %, and list mode (frequency and amplitude hopping) sweeps
- Save all settings to the device for use without a PC
- 32 bit ARM processor onboard which is Arduino compatible
- Labview GUI executable and source code (pictured below) included with purchase
- Windows, Linux, and Android compatibility
- Designed and manufactured in the USA with maximized value and cost ratio
