THzビームスプリッター
光学製品
製品仕様

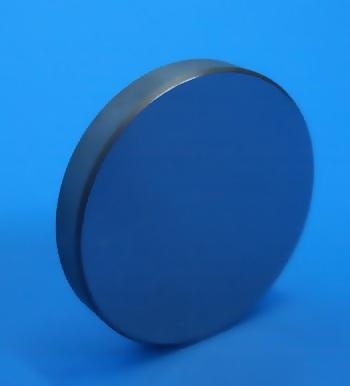

Single-pass THz Beam Splitter
Material HRFZ-Si
Type plano-plano
Available sizes, mm to 150
Diameter or cross-cut tolerance,mm +0.0 /-0.1
Thickness tolerance, mm +/0.1
Clear apperture, % >=90
Parallelism, arc. min 3
Surface quality (two-sided polishing), scr/dig 60/40
Surface accuracy, mm +/-0.01 deviation from ideal plane
Multi-pass THz Beam Splitter
Material HRFZ-Si
Type plano-plano
Available sizes, mm to 150
Diameter or cross-cut tolerance,mm +0.0 /-0.1
Thickness tolerance, mm +/-0.01
Clear apperture, % >=90
Parallelism, arc. sec 5
Surface quality (two-sided polishing),
scr/dig 60/40
Surface accuracy, λ@633 nm 1
