Anapico社製シンセサイザー
シンセサイザ
スイスAnapico社では9kHz-3GHz、10MHz-20GHzまで対応するシンセサイザーを取り扱っております。
Features
- Low phase noise
- Fast switching
- FM, Chirps, PULSE
- Internal OCXO reference
- Single 6V supply
Applications
- Applications
- ATE
- LO for frequency converters
- Telecom / SatCom
製品仕様

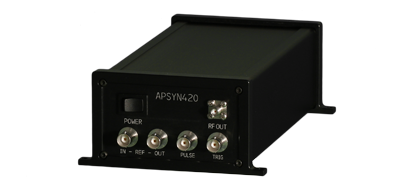

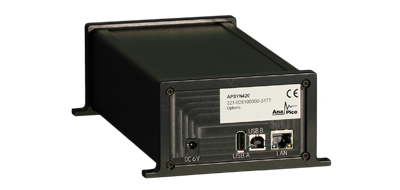

0.01 to 20 GHz Low Noise Synthesizer APSYN420
Frequency Range : 0.01 GHz to 20 GHz
Resolution : 0.001 Hz
Accuracy : 0.1 ppm
Output power level : +23 dBm
Switching speed : 200 µs
SSB Phase noise at 1 GHz :
at 1 kHz from carrier -118 dBc/Hz
at 20 kHz from carrier -128 dBc/Hz
Sweeps : Frequency
Modulation : FM, Pulse, PM
Remote control : Ethernet, USB, SCPI
9 kHz to 3000 MHz Signal Generator APGEN3000
Frequency Range : 9 kHz to 3.0 GHz
Resolution : 0.1 Hz
Accuracy : < 5 ppm
Power Range : - 65 dBm to +5 dBm(Remark : 9 kHz to 10 MHz)
-65 dBm to +13 dBm(Remark : > 10 MHz)
Resolution : 0.1 dB
Accuracy : < 1 dB
Switching speed : 5 ms
SSB Phase noise at 1 GHz :
at 1 kHz from carrier -92 dBc/Hz
at 20 kHz from carrier -102 dBc/Hz
at 1 MHz from carrier -130 dBc/Hz
Sweeps : List, Power, Frequency
Modulation : AM, Pulse
Remote control : Ethernet, USB, SCPI
