VDI社 パワーメーター
パワーメーター
VDI社のパワーメーターはドライカロリメーター方式で75GHzから最大3THzまでの帯域で出力計測することができる検出器です。高感度でありながら扱いやすく、高周波数帯でパワー測定可能な検出器がないためミリ波・テラヘルツ帯でVDIパワーメーターが標準化されております。
製品仕様
Typical PM5 Performance
Scale 90% Response Time* RMS Noise
200 mW 0.15 sec ~0.02 µW
20 mW 0.2 sec ~0.08 µW
2 mW 0.6 sec 0.03 µW
200 µW 12 sec 0.003 µW
*Response time is given as the time from the application of an input
to a response at the analog output of 90% of the final reading.
PM5 Specifications Summary
Description Specification
Signal Input WR10 Waveguide
UG387 Precision Flange
Input Loss <0.15 dB (at 90 GHz)
Maximum VSWR <1.15:1 (80-110 GHz)
Frequency Response 75 GHz to >3 THz
Input Power Range 1 µW - 200 mW
Maximum Input Power 200 mW (Average)
Cal Factor Adjustment ± 29.9 dB using digi-switches

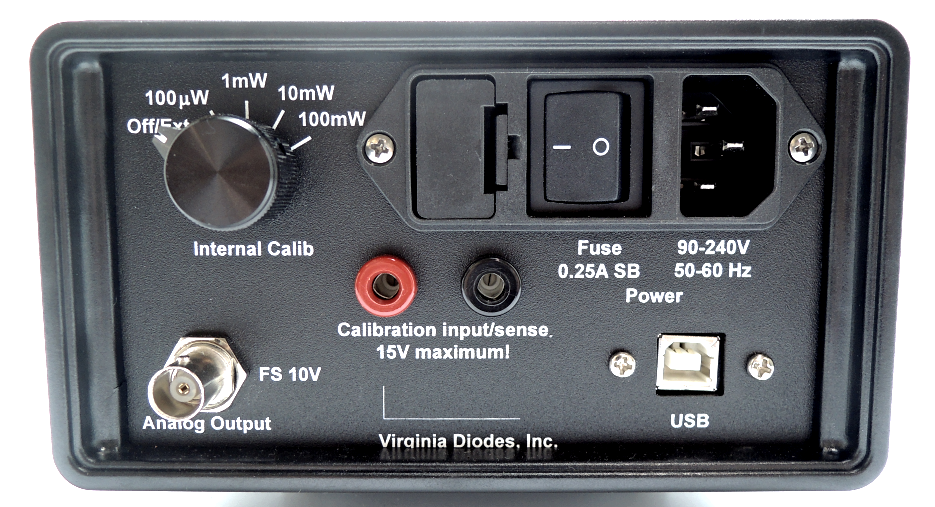

Calibration Check Internal, All Ranges
Temperature Drift Compensation <2 µW/°C
Data Port USB 2.0
Display 4 1/2 Digit LED
Analog Output 0-10 V (BNC Connector)
AC Power Input 90-240 V, 50-60 Hz
Sensor Size 5.1 x 4.8 x 7.6 cm
Power Meter Size ~8.9 x 15.2 x 26.7 cm
Operating Temperature Range 10-30°C
PM5 Option List
-Sensor prepared for use in vacuum (operation in vacuum will alter calibration and other specifications)
-Transitions to other standard waveguide bands are available
